What is a flat single-axis solar tracking bracket?

    Performance data reveals these systems deliver 20–30% higher power output than fixed-tilt installations. Their efficiency is latitude-dependent: regions below 30° latitude achieve the most substantial gains, making them ideal for low-latitude deployment.                                                                                                                                                                                                                          ​

General parameters

1. Photovoltaic tracking bracket: single row flat single axis
2. Tracking range: ±60°
3. Driver: multi-point linear actuator
4. Standard configuration: 2 rows of vertical installation (2P module long side perpendicular to the main beam) up to 4 strings per bracket
5. Compatible modules: Framed modules
6. Optional foundation type: direct tamping (column foundation integrated} pre-drilled/microporous concrete pouring/PHC pipe pile
7. Column section: W-type, compatible with IPE, IPEA
8. Module fixing method: bolts, rivets, blocks
9. Number of columns per MW: [550WD module] -106 columns/MW (120 modules per bracket)
10. [670Wp module] -102 columns/MVV (102 modules per bracket)
11. Allowable wind load and snow load: Designed according to project requirements
12. Back shadow shielding coefficient: 0.8%
13. Maximum wind speed: 42m/s
14. Terrain adaptability north-south slope: ≤15%

Structure

1. Material: high-strength steel material
2. Coating: hot-dip galvanizing HDG, pre-galvanized and magnesium-aluminum-zinc
3. Electrical control specification
4. Controller: Controller with microprocessor
5. Protection level: IP65
6. Tracking method: Astronomical algorithm + Zhihe intelligent tracking technology
7. Advanced wind speed control system: Intelligent gust alarm
8. Wind speed sensor: Three-cup type/ultrasonic type
9. Nighttime stillness: optional
10. Communication method: Wired mode: RS485
11. Wireless mode: LoRa/Zigbee
12. Adaptive environment: Altitude: <4000 meters
13. Temperature: 30℃ to 60℃*
14. Sensor: High-precision angle sensor
15. Motor model: DC motor: 0.2kW
16. Power supply form: Grid power/string power/solar panel self-powered

Support

1. High wind protection, night return mode
2. Heavy rain cleaning mode
3. Snow removal mode

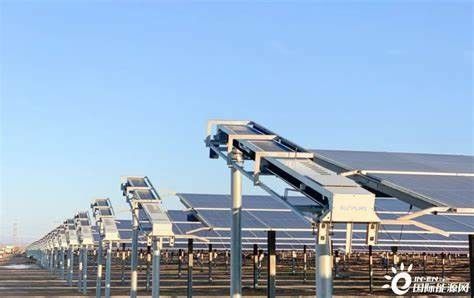

4. Automatic cleaning robot
